Tower Parking System

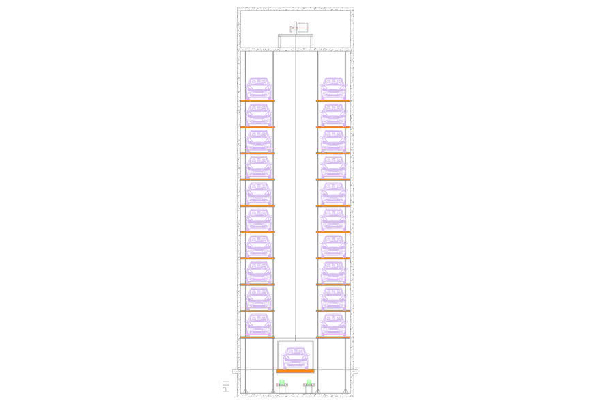

Tower parking is a system wherein upto 60 cars can be parked in a space of 3 cars. Having a lift working up and down in the centre transporting the vehicles to their designated slots vertically. This system can have 5 columns Horizontally and can go upto 30 levels high.
| TYPE | Motorized Tower parking System |
|---|---|
| MODELS | ETPS-X, ETPM-X, ETPB-X |
| POSSIBLE OPTIONS | 1:1 / 1:2 / 0:2 / 0:1 / 2:2 / 2:3 |
| LIFTING CAPACITY | 2500 Kg [ Per Car Weight] |
| LIFTING SPEED | 80 m/min |
| OPERATION | Down collective lifting mechanism with counter weight, Sliding either Side with motor chain mechanism. Integrated System with Touch Screen/ RFID operation. |
| POWER SUPPLY | 415 V, 3 phase, 50 Hz |
| POWER CONSUMPTION | Up to 0.07 units per Operation and 0.01 units per sliding operation (approx). |
Standard Features
Requirements from Client
Standard Features
- Fast and automatic retrieval of cars from the parking Space without removing any cars parked on the ground level of the system.
- High speed Geared motors with counter weight and Guides for smooth lift and lowering.
- Turntable on the ground level for getting the car in the Drive out position
- Motor- Chain operated Sliding Mechanism.
- Complete system monitored by PLC for smooth and error free automation.
- Back up Limit switches provided for each slot for duplex safety.
- Robust Steel structure.
- Fully automatic integrated operation.
- Emergency Shut Down switch.
- Optional Touch Screen/Numerical Keyboard / RFID Swipe card operation Panel.
Requirements from Client
- Parking area allotted must be cleared with no obstructions.
- While erection of the system client should provide storage facilities for keeping our tools and other valuable parts of the system.
- Temporary Electrical connection must be provided at the time of erection and installation of the systems.
- MCB and Main Electrical Connection (or 4 Pole RCBO) along with electrical cable fitting must be provided from the Main Power supply to the parking systems. With 3Ph 415V AC, 50Hz with Neutral and Earth(3Ph+N+E) as per our specifications.
- Civil work as foundation for stack parking system must be done at stack parking allotted area prior to installation as per the foundation plan submitted by us.
- If the system to be installed in the RCC shaft, hooks to be provided on the top as per our drawings.
- In case of Parking Installed in open to Sky location, it is recommended to have a weather covering over the installation to prevent damage to the electronics / mechanism due to weathering.
